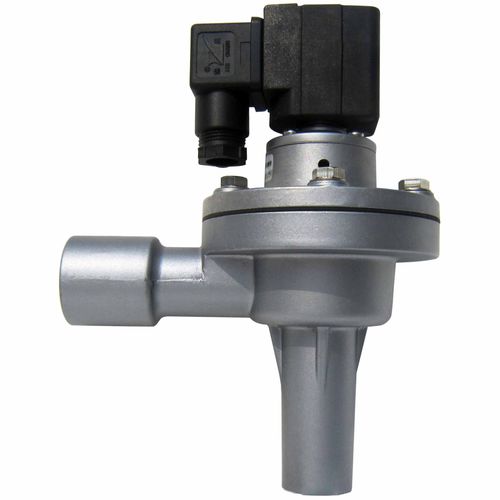

Diaphragm valve DCF-2L-B electricfor airthreaded
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- electric
- Media
- for air
- Body
- threaded
- Other characteristics
- pulse
- Pressure
Min.: 400,000 Pa
(58 psi)Max.: 600,000 Pa
(87 psi)- Temperature
Min.: -25 °C
(-13 °F)Max.: 85 °C
(185 °F)
Description
Abstract：
technical standard Working pressure: 0 4~0 6MPa Working medium: clean air Voltage: DC24V, (AC220V 50HZ)
technical standard
Working pressure: 0.4~0.6MPa
Working medium: clean air
Voltage: DC24V, (AC220V/50HZ)
Use environment:
1 temperature: normal temperature diaphragm -25 ° C ~ 85 ° C
2 The relative humidity of the air does not exceed 85%
Protection level: IP65
Diaphragm life: 5 years or 1 million times
