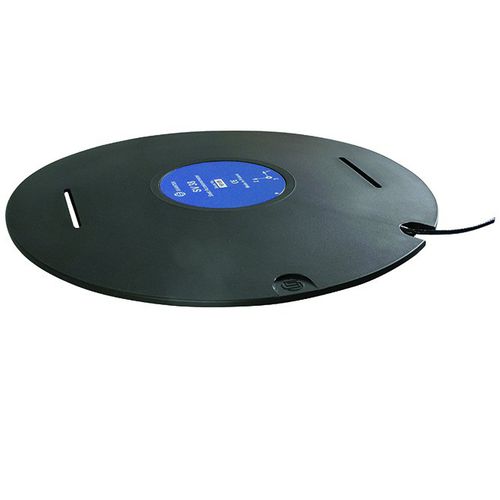

Triaxial accelerometer SV 38

IEPEICPMEMS

SV 38 IEPE Whole-Body Seat Accelerometeris based on MEMS transducers. It is dedicated for Human Vibration measurements performed according to ISO 2631-1 with SVAN 958A four channel analyser. With optional SC 39S cable it is possible to connect SV 38 transducer to any vibration meter/analyser with IEPE inputs by the means of three separate BNC connectors. Calibration can be performed using dedicated adapter SA 38 (option). Features: •Meets ISO 8041 and ISO 2631 •IEPE / ICP powering •Low price •Dedicated to SVAN 958 and SVAN 958A SV 38 Whole-body Triaxial Accelerometer Specification Performance: Number of axis: 3 Sensitivity (± 5 %): 100 mV/ms-2 at 15.915 Hz, HP1 Measurement range: 0.01 ms-2 RMS ÷ 50 ms-2 PEAK Frequency response: 0.1 Hz ÷ 100 Hz Resonant frequency: 5.5 kHz (MEMS transducer) Electrical noise: < 316 μV RMS, HP1 weighting Electrical: Supply current1 mA ÷ 10 mA (2.5 mA typ.) per channel (IEPE) Supply voltage: 22 V ÷ 30 V (28 V typ.) Bias voltage: 15.3 V ± 0.5 V Output impedance: 51 Ohms Charge/discharge time constant: 30 sec. typ TEDS memoryinstalled (Channel 1)
