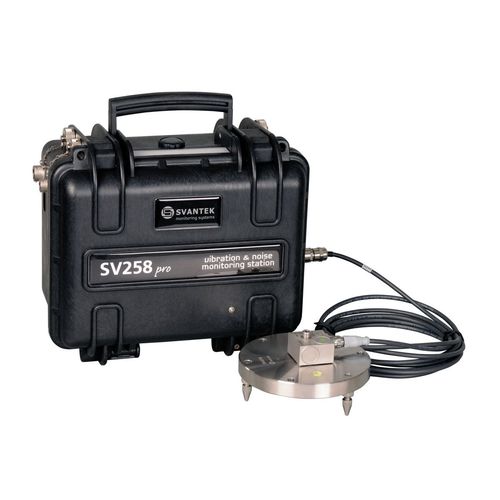

Noise monitoring station SV 258 PRO

vibrationbattery-powered

The new SV 258 PRO is dedicated for building vibration measurement that use methods based on Peak Particle Velocity and Dominant Frequency. The measurement of human vibration in buildings is possible as the program allows simultaneous measurement of velocity and acceleration of vibrations with two independent steps of recording. In addition, it is possible to enrich the measurement with Class 1 sound results. Users can use predifined settings compatible with commonly used standards such as DIN 4150-3 or BS 7385-2 or configure a criterion curve based on FFT or 1/3 Octave analysis in accordance with local standards. The vibration time history in the form of WAV is stored for all three channels and is used for verification of vibration sources. Accurate post-analysis of the frequency content of the signal is available in the SvanPC ++ program. The built-in GSM modem transmits measurement data to the SvanNET server where the user has access to current data, files with historical data and can also generate a measurement report. The system generates SMS and Email notifications as well as visual and audible alarms (optional alarm lamp). In addition to simple triggers from PPV or LEQ values, the you can configure alarms from standard curves (e.g. DIN 4150-3) or custom curves based on FFT or 1/3 octaves. It is possible to move the criterion curve up or down the scale so that the alarm is generated earlier or later. The time and value of the alarm are saved together to the memory of the meter.
