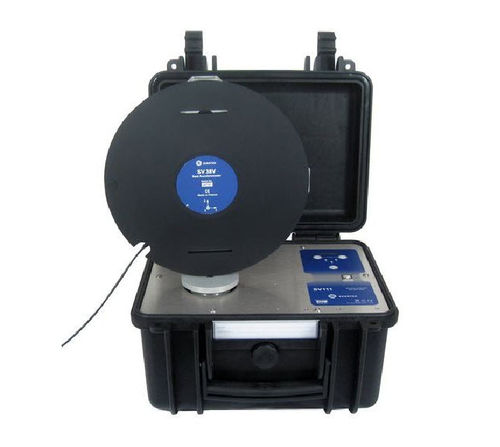

Vibration calibrator SV 111

for vibration analyzersportablemulti-frequency

SV 111 vibration calibrator is the State of the Art instrument designed for human vibration measurements according to ISO 8041. The design of the calibrator is based on the triaxial reference accelerometer and microprocessor controlled shaker. These both features assure excellent stability of the calibration levels and their frequency independently from mass of the testing object, like also indicate improper test object fixing by monitoring of shaker vibration in all three axis simultaneously. The SV 111 is a multi-frequency calibrator which provides following frequencies 16 Hz, 80 Hz and 160 Hz. Vibration level is selectable as well. Shaker can be loaded with large weight which is up to 1 kilogram what together with special adapter provide fast and easy calibration of complete seat accelerometer in all three axis. Other types of vibration transducers can be conveniently attached using mounting stood, adapter for SV 101 instrument or mounting disc. Waterproof casing and built-in rechargeable battery makes this device excellent in field vibration calibrator for human vibration measurements, building vibration measurements and general purpose applications
