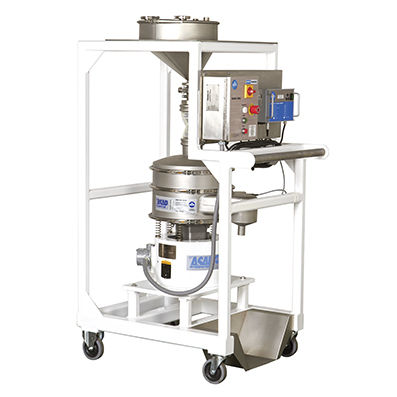

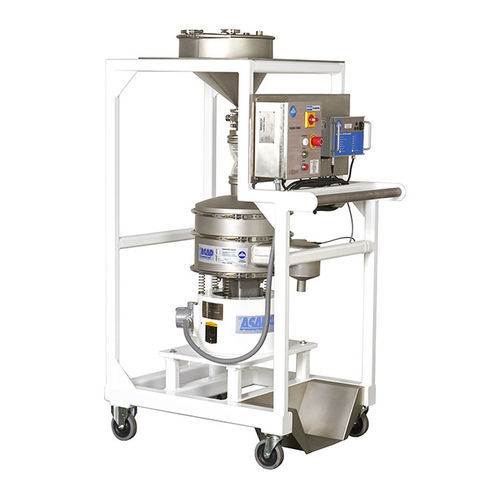

Mobile screener 3dMP

for powderscompact

SWECO, the world leader in separation technology, introduces the 3D Metal Printer (3dMP) Screener System. This innovative design collects, screens, and rebottles reclaimed metal powder from 3D metal printers. The 3dMP Screener System is totally integrated, eliminating multiple operations and any material handling. The system is set up to feed in the used metal powder with agglomerates and discharge screened metal powder ready to be reused or mixed with virgin material. Quick Processing Time The 3dMP can screen a bottle of metal powder material in under 5 minutes as opposed to other processes that can take up to an hour or more. Compact and Portable The 3dMP is a compact system that can fit into tight spaces and takes up very little floorspace. And the system has been designed with casters for portability so you can easily move the 3dMP to multiple work stations around your facility. Integrated Custom Controls The 3dMP features integrated custom designed controls for both the Vibro-Energy Round Separator and the Sono-Wave Ultrasonic Screening System. There is also the option for the contorls to interface with other systems and equipment in your process, including the 3D printer itself. Totally Enclosed & Sanitary The 3dMP is completely enclosed, minimizing the chance of product spillage or exposure to the operators. The metal powder is fed into the hopper which feeds the separator. The hopper and separator are connected via a BFM® Connnector providing a sanitary connection and a no-tools, quick disconnect. Product contact areas come standard with complete ground welds and a polished(12-25 Ra) surface. Other finishes are available if required.
