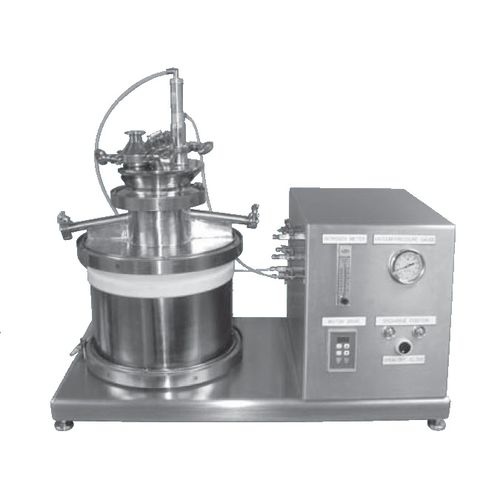

Aseptic separator PH06

vibratingliquidsfor the pharmaceutical industry

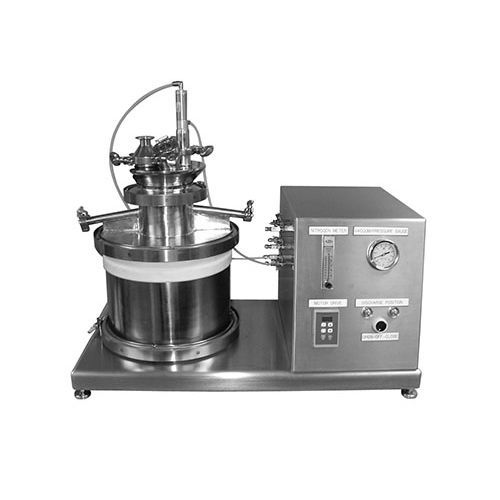

SWECO PharmASep™ Filter/Dryers were designed for the aseptic batch filtration and washing of pharmaceutical solids and for their further dewatering and drying. All processes are completed within the sealed chamber without any need for intermediate transfer, handling, or exposure to the external environment. The PharmASep™ uses gentle, patented Vibro-Energy motion to promote fluid separation at low differential pressures. The motion is then combined with nitrogen purge to fluidize the bed of solids for gentle, efficient drying. No mechanical stirring devices are required. Solids are generally discharged as a flow-able powder with consistent dryness and free of lumps. Additional features are as follows: *Chamber design is crevice-free and fully-drainable *Interior Ra < 0.3 microns and electropolished *Exterior Ra < 0.6 microns and passivated *Temperature-control jackets available *Certified explosion-proof motors *Custom control panels available *Hydraulic lift devices facilitate screen change and internal inspection *ASME rated for full vacuum and internal pressure up to 30 PSIG (2 bar) *No internal scraping or rotating mechanical devices or seals *Full line of PharmASep™ screens complete with certifications and traceability to suit your process needs
