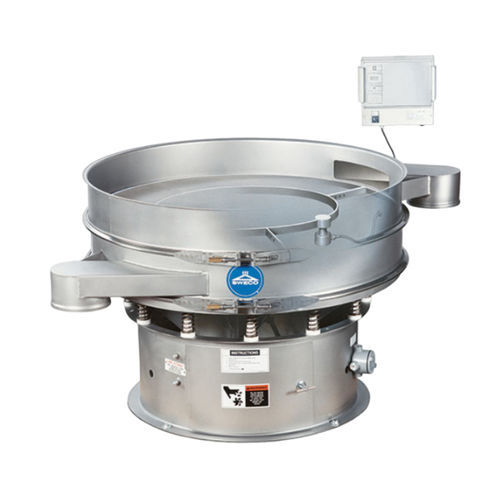

Screener for the food industry Sono-Energy™

for powder recyclingvibratingfor bulk materials

Generator Box •Small and lightweight (320mm x 280mm x 170mm,; 3.4 kg; 12.5 in x 11 in x 6.7in; 7.5 Ibs) •Fully mcroprocessor-controlled circuitry constantly monitors vibration of screen clotn, assuring that the System remains "at résonance* even as load-ing conditions change Electrical Spécifications •Operates on 220 volt +1-10% single phase power, 50 or 60 Hz •0-200 watts effective power to screen 97% Energy Efficient •No heat génération •Internai ring is a "tuned" structure made of 316 s.s. •Support spokes attach to internai ring at node points. Therefore spokes will not dampen the ring vibration •Ultrasonic vibration evenly distributed throughout entire screen area Transducer Designs •Standard 316 stainless Steel •Explosion proof rating available •Welded type - transducer permanentty attached to screen ring •Threaded type - easity removable; transducer can be transferred from one ring to another Strength and Long Life •Re-screenable frame can be used again and again Reliable, Durable Feedback Circuit •Self-tuning, self-monitoring feedback circuit results in consistent vibration transmission even at 72" screen diameters Available Adjustments Slow puise - ultrasonics cycle on and offat a rate of IX per second; useful when screening light density powders in dedusting applications Fast puise - ultrasonics cycle on and offat a rate of 10X per second; useful in applications where ultrasonic vibration causes particles to bounce too high even at low intensity levels Continuous duty operations - ultrasonics are always on; used for the vast majority of screening applications Intensity of vibration - from 45-100%
