Grinding workpiece clamping chuck PZLHM

for precision engineeringworkpieceprecision

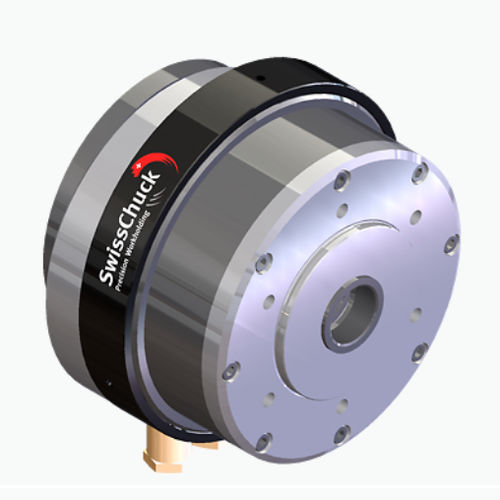

The compressed air hollow cylinders were specially developed as a clamping unit for power clamping devices on machine tools with RPMs up to 8000 min‾¹. Rotating clamping cylinders are attached to the spindle end of a lathe or a grinding machine. They have the task of generating an axial force for the rotating power chucks mounted at the spindle head. This axial force is transmitted via a connecting link, designed as a tube or a drawbar, going through the spindle bore to the respective power chuck used with an adapter. Functions & Fields of Application • Cylinder with a through bore, for example, for grinding fluids or air-controlled workpiece contact • Available in varied sizes and different piston surfaces • Special design for your machine Advantages • Compact and lightweight construction • Double-action clamping cylinder, pneumatic clamping, and releasing • Adapted for precision chucks • With safety valves. Clamping is pneumatically safeguarded Specially designed clamping cylinder for your machine, too! We are also happy to support you with a specific solution for your machine. Do you need more stroke or even more sensitive clamping? Do not hesitate to contact us - we have already implemented numerous special solutions.c
