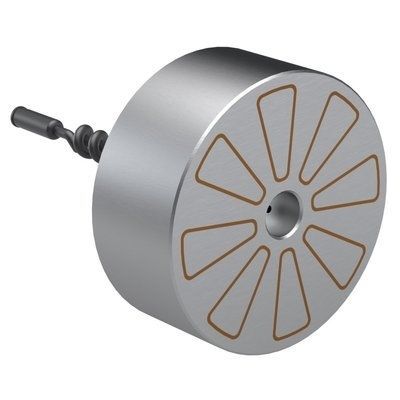

Permanent magnet magnetic chuck

circularwith radial pole pitchwith parallel pole pitch

The permanent magnet chucks are mechanically switchable. Designed in line with the latest technology and with its robust construction, the chosen magnetic materials ensure the highest holding forces and the greatest level of accuracy on the pole plate surface. Functions & Field of Application • Particularly suitable for centric clamping of rings, flanges, bearing housings, and similar rotationally symmetrical components • Mainly used on rotary tables and cylindrical grinding machines • The careful dimensioning of the magnet systems ensures a particularly uniform holding force. • The holding force is adjustable Advantages • Maintenance free • If the surface shows signs of wear, these can be removed by careful reworking • Economical • Long service life
