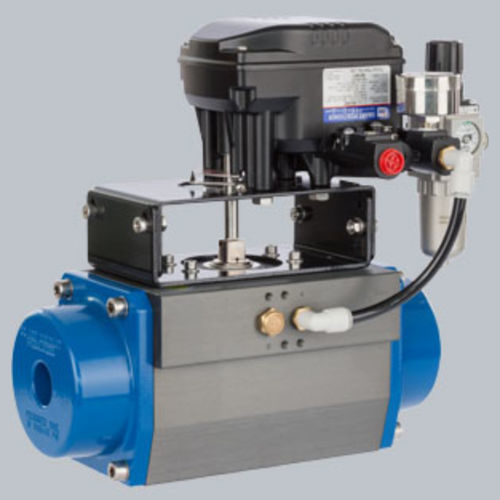

Rotary actuator SPA-Rpneumaticsingle-actingstainless steel
Add to favorites
Compare this product
Characteristics
- Movement
- rotary
- Type
- pneumatic
- Configuration
- single-acting
- Material
- stainless steel, aluminum
- Norms
- ISO
- Protection class
- robust
- Applications
- for ball valves, for butterfly valves, for ball valves
- Other characteristics
- control, quarter-turn, NAMUR
- Stroke
Min.: 50 mm
(1.969 in)Max.: 420 mm
(16.535 in)- Pressure
Min.: 1 bar
(14.5 psi)Max.: 8 bar
(116 psi)- Torque
Min.: 12 Nm
(8.851 ft.lb)Max.: 10,025 Nm
(7,394.061 ft.lb)- Rotation angle
90 °
- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
Pneumatic Quarter Turn Actuators SPA-R are ideal for trouble-free, modular automation of process valves such as butterfly, plug and ball valves or as a control unit on reactor sampling systems.
Main features
• Robust Rack & Pinion construction
• For dry or lubricated, filtered compressed air
• Plant-side lubricated for 1'000'000 cycles
• Hard anodized / epoxy coated body for excellent corrosion protection
• Multiple bolt circles according to ISO 5211-DIN 3337 for direct automation
• Top drillings according to NAMUR VDI\VDE-3845 for accessory mounting
• Visual position indicator
• Pre-compressed spring cartridges for safe dismantling
