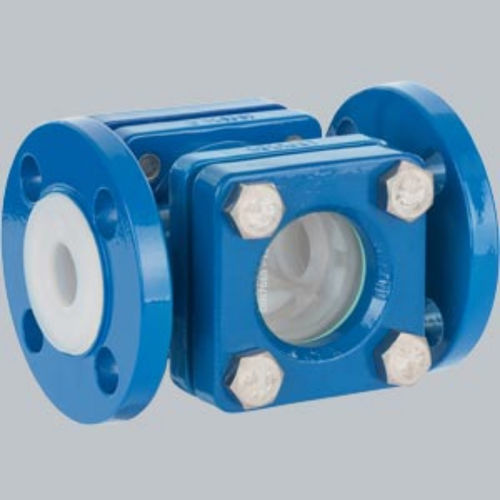

Sight glass for industrial applications SSP
Add to favorites
Compare this product
Characteristics
- Specifications
- for industrial applications
- DN
Max.: 150 mm
(5.9 in)Min.: 15 mm
(0.6 in)- Operating temperature
Max.: 200 °C
(392 °F)Min.: -40 °C
(-40 °F)- Operating pressure
Max.: 40 bar
(580 psi)Min.: 0 bar
(0 psi)
Description
Fully lined Sight Glasses as reliable flow indicators for virtually all existing process media in either liquid or even gaseous state.
Main features
• Heavy-duty, proven construction -
maintenance-free
• Horizontal or vertical installation
• For liquids, gases and steam
• Large observation opening
• Standard drip ledge indicating even lowest flow
Technical data
Face to face - EN 558-1 series 1 - ASME B16.10
Body/cover - Cast steel 1.0619 - ASTM A216 WCB
Lining - PFA, PFA-AS (conductive)
Glass plates - Borosilicate acc. to DIN 7080
Gasket (outer) - C-4400 asbestos-free
Operating conditions - (depending on material selection)
