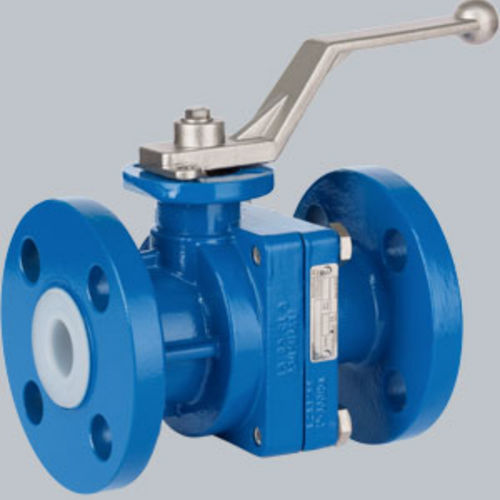

Ball valve SBV 300manualfor controlshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- for control, shut-off
- Media
- for gas
- Body
- stainless steel, PFA
- Applications
- flange, liquids
- Other characteristics
- ISO, ANSI, locking
- DN
Max.: 3 in
Min.: 1 in
- Pressure
50 bar
(725.2 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -40 °C
(-40 °F)
Description
Fully lined Ball Valves for shut-off and control of corrosive, permeating liquids or gaseous media.
Main features
• Two-piece body, metal-to-metal joint
• Anchored lining with positive locking to body
• Dynamic, maintenance-free shaft sealing acc. to TA-Luft
• One-piece ball/shaft, blow out proof, core of SS Duplex
• Rated breaking point outside of valve
• Bodies with optional flange connections PN40 as well as ANSI Class 150
• Ball options such as V-port, C-port, with pressure relief hole
• ISO top flange for direct mounting of pneum. quarter turn actuators
