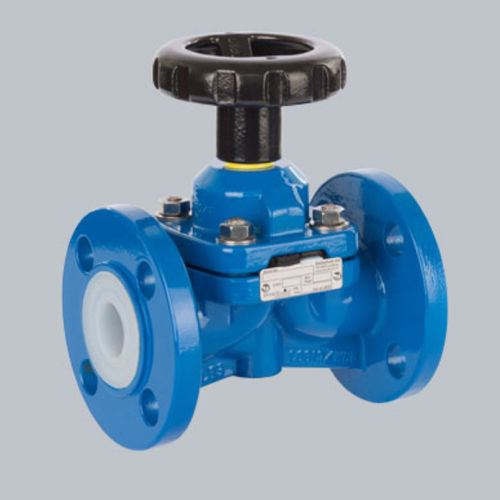

Diaphragm valve SDVmanualshut-offstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- manual
- Function
- shut-off
- Body
- stainless steel, cast, PTFE, EPDM, cast steel, PVDF
- Applications
- liquids, high-purity
- Fluid specification
- for corrosive fluids
- Other characteristics
- ISO, DIN, ANSI, for corrosive fluids
- DN
Min.: 15 mm
(0.591 in)Max.: 200 mm
(7.874 in)- Pressure
Min.: 1 mbar
(0 psi)Max.: 16,000 mbar
(232.1 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 150 °C
(302 °F)
Description
Fully lined weir type Diaphragm Valves for shut-off or throttling of corrosive liquids or gaseous media. Due to its cavity free design it is also well suited for high-purity applications.
Main features
• Proven weir type valve body made of cast steel
• Cavity-free design
• Installation in any attitude (self-draining)
• Force limiting device protecting diaphragm
• Yellow sight indicator showing actual position of diaphragm
• Easy replacement of components on site
