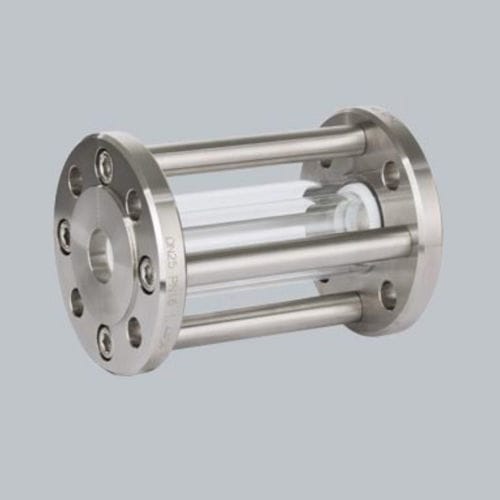

Stainless steel sight glass SST-T
Add to favorites
Compare this product
Characteristics
- Specifications
- stainless steel
- DN
Min.: 15 mm
(0.6 in)Max.: 150 mm
(5.9 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 200 °C
(392 °F)- Operating pressure
Min.: 1 mbar
(0 psi)Max.: 16,000 mbar
(232 psi)
Description
Tubular Sight Glass SST-T fully made of stainless steel as reliable flow indicator for process media in either liquid or even gaseous state.
Main features
• 360° circumferential visibility over the entire length
• Cavity-free at horizontal and vertical installation
• Additional safety by PMMA protection tube
• Easy cleaning and maintenance
Technical data
Face to face - EN 558-1 series 1 - ASME B16.10
Flanges - 1.4404 - AISI 316L
Tie bars - 1.4404 - AISI 316L
Glass cylinder - Borosilicate 3.3
Safety shield - PMMA-XT (Acrylic glass)
Gaskets - PTFE/FPM insert
Operating conditions - (depending on material selection)
ptions
Flanges - Titanium Grade 2, Hastelloy C
Gaskets - PTFE-T
Flow indication - visual indication for gases (PTFE ribbon)
