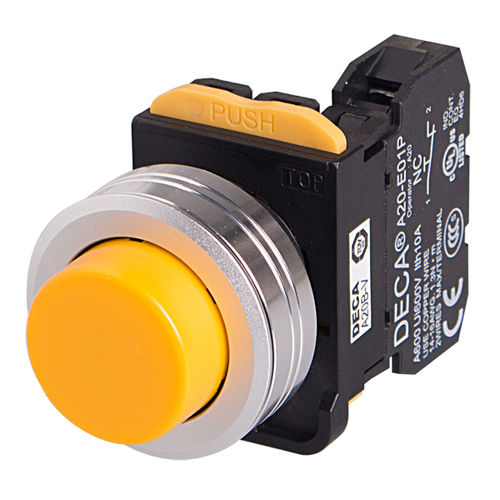

Touch push-button switch DECA Φ22A20 Pushbutton Switcheswaterproofmetalelectromechanical
Add to favorites
Compare this product
Characteristics
- Type
- touch
- Protection level
- waterproof
- Other characteristics
- metal, electromechanical, momentary, flat
Description
DECA Φ22A20 Pushbuttons (Metal Bezels)
* Extended with Low Metal Silhouette
* Contact resistance : Max. 50mΩ (initial value)
* Insulation Resistance : 100mΩ minimum at 500VDC megger
* Dielectric strength : Contact block : 2,500VAC for 1 minute
Illuminated unit : 2,000VAC for 1 minute
* Vibration Resistance : Operation Extremes: 5-55Mhz, Amplitude: 0.5mm
Damage Extremes: 50Mhz, Amplitude: 1.5mm
* Shock Resistance : Operation Extremes: 100m/s²
Damage Extremes: 1,000m/s²
* Electrical Life : 250,000 (1 contact), 100,000 (2 contacts)
* Ambient temperature : Operation: -25°C~ +55°C, Storage: -45°C~+85°C
