Printed circuit board terminal block DECA PCB Tri-Barrier Terminal Block | T46Mscrew connection
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Connection
- screw connection
- Nominal voltage
300 V
Description

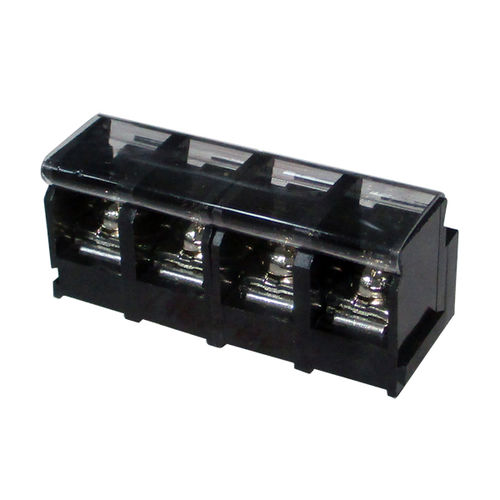

DECA PCB Tri-Barrier Terminal Block (貫通式端子台 - T46M-BS11)
* Insulator body : Polyamide66 (UL94V-0), Black
* Pitch : 11.00mm
* Screw : M4.0 Steel, Ni plated
* Insulation resistance : 2000MΩ at DC 500V
* Insulation withstands volt : 2000V 1min
* Wire range : 14 ~ 22 AWG
* Screw torque : 16 lb-in, Screw with washer
* Rated Voltage : 300V
Catalogs
No catalogs are available for this product.
See all of SWITCHLAB INC.‘s catalogs
