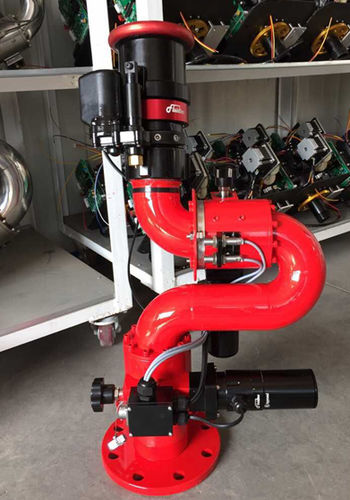

Automatic fire nozzle PSKD20-40

fog

Flow Range: 20-30-40L/S (320GPM-630GPM), Adjustable Working Pressure: 6 bar~ 8 bar Max Reach @ Max Flow: 60M (148-180ft) Max. Range of motion: +/-90¡ãVert , 350¡ãRot Max fog angle £º120¡ã Turning speed£º18 degrees/sec Material (body)£º304L Stainless Steel, 316L Stainless Steel is also available Material (Gear)£ºhardcoated anodizing aluminum Material (nozzle)£ºAlumimun power supply£º12/24VDC or 100-230VAC Power Consumption normal/Max£º50W/150W Weight incl. nozzle£ºappox 20kg Cable Length Monitor- CPU£º5m Cable Length Joystick-CPU£º5m standard/ other length available Pump requirement for minimum performance£º40L/S@ 6 bar Pipe dimensions for installation: 2-2.5 Inch Monitor Inlet£º2.5¡± male BSP or DN65 flange Monitor Outlet£º2.5 inch (50mm) Water way size: 2-1/2 inch
