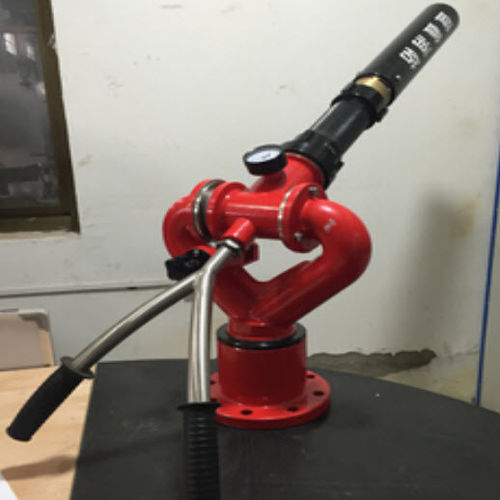

Manual fire nozzle PL24-64A

fog

Type: PL24-64A Flow Range: 24-64 L/S Adjustable (380-1000GPM) Working Pressure: 10 bar Max Reach @ Max Flow: 65m (Water) and 60M (Foam) Range of motion: -45°~+90°Vert , 360°Rot Max fog angle ：120° Material (body)：Aluminum Material (nozzle)：Aluminum, with stream sharper Material (Tiller) ： 304 stainless steel with rubber handle Pump requirement for minimum performance：24L/S@ 8 bar Pipe dimensions for installation: 4 Inch Monitor Inlet: DN100 flange Monitor Outlet：2.5 inch (65mm) Paint: Fire Red
