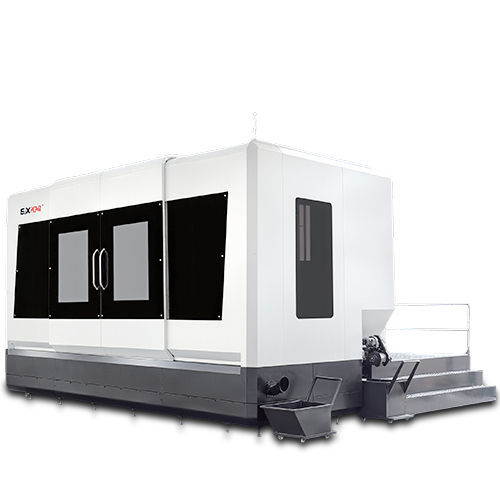

CNC drilling and milling machine MAD1512S

rotating tablehorizontal6-axis

SXKH MAD Series are Horizontal Milling Machine with angular capacity & rotary table. The main advantage comes from its multi-task capacity to do big millings, drilling, tapping and deep hole drilling.This allows to accomplish all mold's milling and drilling needs in the six faces of the part with a convenient way. The combination of a wide angular capacity with a rotary table, allows extreme flexibility to reach all usual milling constrains areas. Model: MAD-1512S Diameter of the Hole for GunDrill Φ4-Φ35mm Diameter of the Hole for Ejector Φ18-Φ65mm Maximum Depth of the Hole for GunDrill 1000mm Maximum Depth of ejector 1000mm Processing range (from Left to Right) of X 1500mm Processing range of sliding table Y 1200mm Processing range of column Z 800mm Spindle: Taper hole spindle BT50 Maximum speed of spindle 6000r/min Efficiency: Fast speed (X,Y,W,Z) 10m/min Maximum speed of working table 2r/min Maximum speed of Ram 200°/min Power: spindle motor 15kw X axis servo motor 30N.m Y axis servo motor 40N.m W axis servo motor 22N.m Z axis servo motor 30N.m A axis servo motor 22N.m B axis servo motor 22N.w TOTAL POWER 45kw Cooling system: Pressure range of cooling liquid 2-11/1-17Mpa Flux of cooling liquid 6-80L/40-165L/min CNC index table: 5 ton Measurement: 1000*1000mm CNC System: FANUCOi-MF
