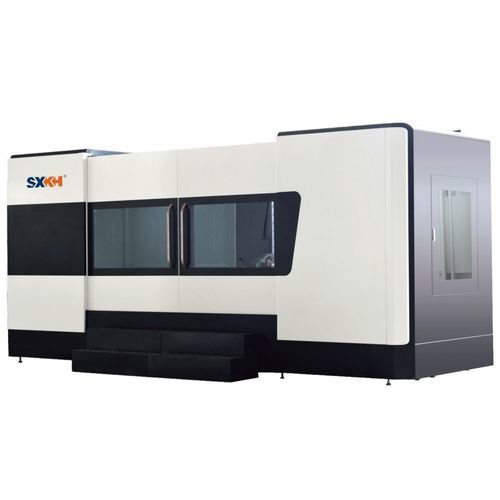

CNC deep hole drilling machine DHD-1000horizontal3-axisdeep hole
Add to favorites
Compare this product
Characteristics
- Type
- CNC
- Structure
- horizontal
- Number of axes
- 3-axis
- Applications
- deep hole
- Power
30,000 W
- Weight
10 t
(11 us ton)
Description
PRODUCT FEATURES
* Three coordinates NC linkage runs automatically.
*Slender deep hole machining process without return.
*Processing aperture range:gun drill 30-35mm,BTA 18-65mm(BTA is optional)
Model: DHD-1000
Drilling aperture: Φ4-Φ32mm
Drilling depth: 1000 mm
Table horizontal 1000mm
Main spindle vertical 900mm
Spindle speed 0-6000r/min
Feed speed 0-3000 mm/min
Size 1200*900
Max loading capacity 6T
Spindle power 7.5-11kw
X axis motor 1.8kw
Y axis motor 1.8kw
Z axis motor 1.8kw
Power: 30kw
Cooling system:
Cooling pressure: 2-110kg/cm²
Rate of flow: 6-80L/min
Machine weight: 9T
CNC System: SYNTEC 11MA
