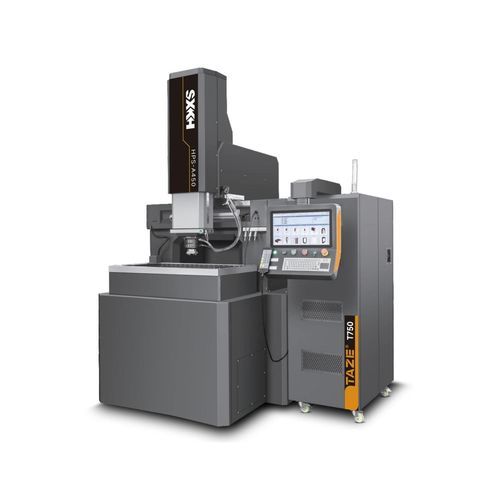

Die sinking EDM HPS-A450CNChigh-accuracyhigh-speed
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- CNC, high-accuracy, high-speed, flexible, for mold manufacturing
- X travel
450 mm
(17.72 in)- Y travel
350 mm
(13.78 in)- Z travel
300 mm
(11.81 in)
Description

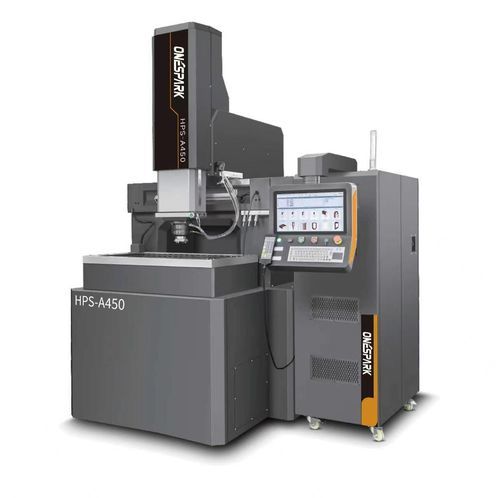

MODEL: HPS-A450
FULL-AUTOMATIC MIRROR EDM MACHINE
Table specifications (L×W) 700×450mm
X/Y/Z axis working travel 450 / 350 / 300 mm
Maximum electrode load 50 Kg
Maximum table load 600KG
Distance from electrode tip to table 270-590mm
Working oil tank volume (L×W×H) 900×700×430mm
Liquid tank working fluid capacity 270L
Maximum workpiece size (L×W×H) 850×650×350mm
Liquid level height 380mm
Distance from ground to table-top 830mm
Oil tank capacity 900L
Total weight (including oil tank) 5500KG
Overall size [L (left and right) × W (front and back) × H] 1500×2222×2800mm
