Die sinking EDM HPS-B45Shigh-accuracyfor mold manufacturing
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- high-accuracy, for mold manufacturing
- X travel
450 mm
(17.72 in)- Y travel
350 mm
(13.78 in)- Z travel
300 mm
(11.81 in)
Description

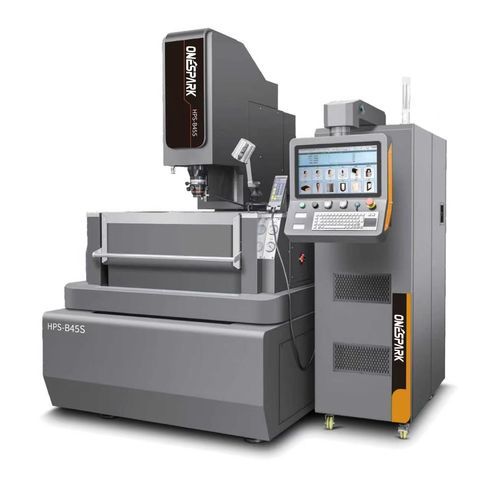

MODEL: HPS-B45S
MIRROR EDM MACHINE
X/Y/Z-axis working travel 450 / 350/ 300mm
Working oil tank volume (LxWxH) 900x640x410mm
Table specifications (LxW) 700x400mm
Distance from electrode tip to table 100-400mm
Maximum electrode load 30KG
Maximum table load 400KG
Net machine weight (including oil tank) 2850KG
Overall size (LxWxH) 2000x2200x2380mm
Exterior dimensions of the filter box (LxWxH) 1520x700x1150
