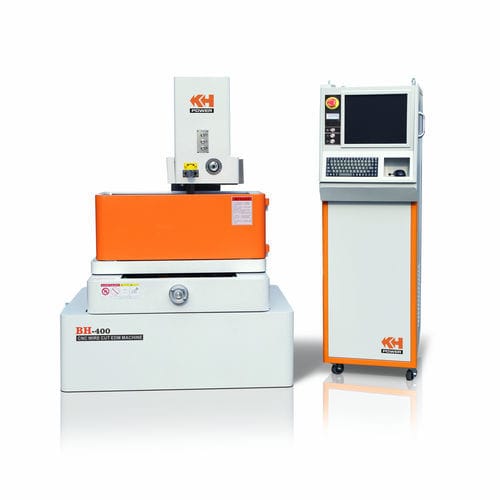

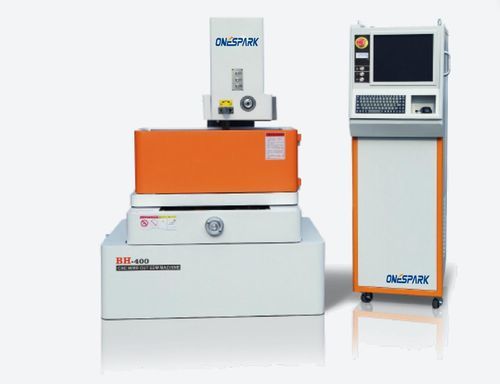

Wire-cut EDM BH-400

CNC

•T type mechanical structure,automatic tightening system; •High efficiency and low consumption digital high frequency; •Max cutting speed 200mm² /min; •Each 400,000mm² wear 0.01mm diameter wire; •Best Roughness ≤ 0.8 μm; •Standard installed Taiwan Linear Guide, ball screws; •Step Control WEDM Cabinet( Optional AC Servo Control Cabinet ). MODEL: BH-400 Work Table Size(LxW) 850*600mm Work Table Travel(XxY) 500×400mm Max. Cut Thickness(Z) 250mm Max.capacity loading 500KGS Max.Cutting Speed 180mm²/min Max.current 8A Process Roughness(Ra.) One Cut≤2.3um Second Cut≤1.6um Third Cut ≤1.0um Cutting Accuracy straight line 0.005 octagonal 0.01 Jump Accuracy 0.01mm/0-200mm 0.015/0-350mm 0.02mm/0-500mm Machine taper ±3°/80 (Optional ±10°/50) Wire diameter range 0.12-0.25 (standard 0.18) Motor drive system X,Y STEP MOTOR(OPTIONAL:AC SERVO MOTOR) Water Tank High Pressure WEDM-LS filter Volume 100L Working liquid Water Based Liquid Consumed Power ≤3.5 Power Supply 380V/50HZ/3PH Machine Weight 2160KGS Machine Dimension 1600×1220×1700 mm Outside dimension 1850×1420×1800 mm
