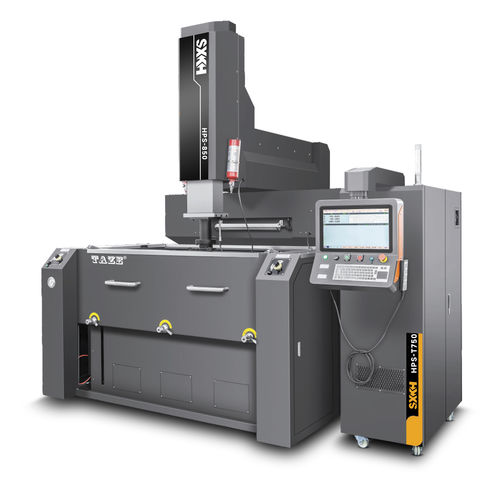

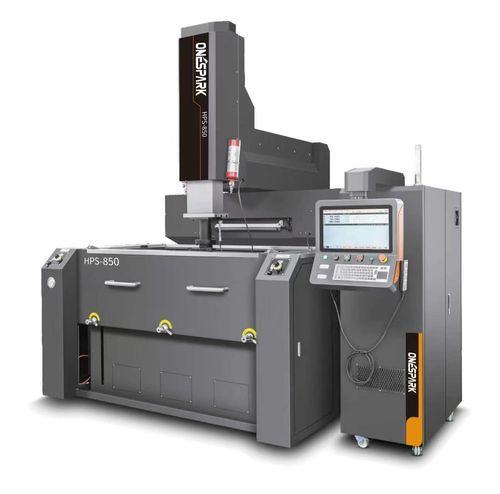

Die sinking EDM HPS-850high-accuracyhigh-speedflexible
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- high-accuracy, high-speed, flexible, for mold manufacturing
- X travel
800 mm
(31.5 in)- Y travel
500 mm
(19.69 in)- Z travel
400 mm
(15.75 in)
Description
MODEL: HPS-850
X/Y/Z-axis working stroke 800/500/400mm
Working oil tank volume (LxWxH) 1800x1100x570mm
Table specifications (LxW) 1150x600mm
Distance from electrode head to table 500-900mm
Max. electrode load 180KG
Max. worktable load capacity 3000KG
Net machine weight(including oil tank) 4800KG
Size (LxWxH) 2280x2600x2690mm
Oil tank size (LxWxH) 2260x1650x500mm
