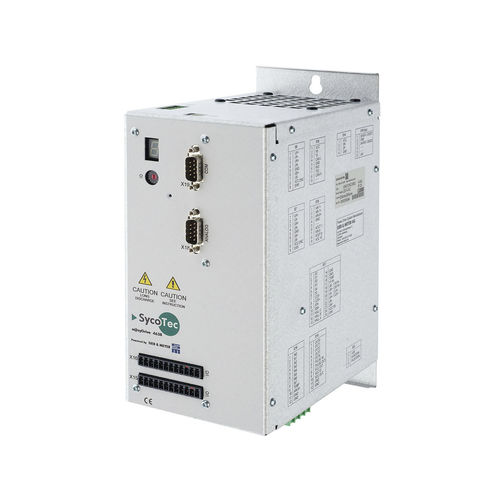

Digital frequency inverter e@syDrive® 4638

cabinetindustrialcompact

Inverter e@syDrive® 4638 Technical data Part No. 2001 6091 2002 2422 : with choke Input voltage 1 x 230 V AC (-10%/+10%) / 50/60 Hz Output voltage 200 V AC Output current 11 A (max. 20 A) Rated output power 3.800 VA Output frequency max. 8.000 Hz Modulation type SVC, HSPAM/UF, HSBLOCK/FPAM, HSPWM Brake resistor (internal) 20 Ohm / 50 W Ambient temperature 5 - 60 °C Protection category IP 20 Design Cabinet version EMC EN 61800-3 Weight 3,5 kg Power supply Integrated Supplement Incl. mating connector set Configuration Via computer interface (USB/RS232) Via e@syDrive® 4638 control Interfaces 5 x Digital output 2 x Analogue output 9 x Digital input 2 x Analogue input 1 x CAN 2 x RS232 1 x SERVOLINK 4 DC Spindle reference 4060 DC-S, 4060 DC-T, 4061 DC-S-CS-TC, 4061 DC-T, 4064 DC-HSK25, 5045 DC (all types) AC Spindle reference 4060, 4060 AC-T, 4060 ER, 4060 ER-S, 4061 AC-CS-TC, 5045 DC (all types), 50100 AC-duo Accessories optional Operating device e@syDrive® 4638 control (Part No. 2001 8723)
