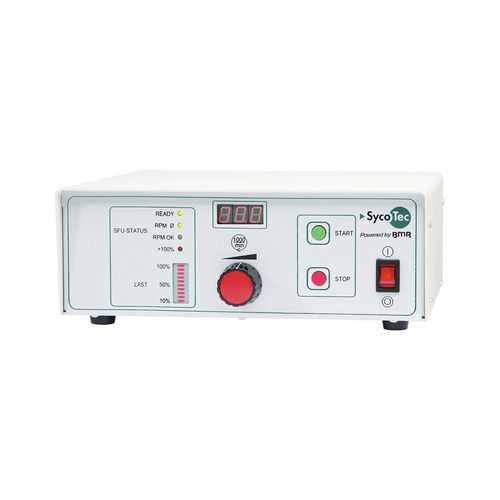

Digital frequency inverter e@syDrive® TV 4504industrialcompact
Add to favorites
Compare this product
Characteristics
- Type
- digital
- Applications
- industrial
- Other characteristics
- compact
- Power
10 W
- Intensity
9 A
- Output frequency
1,667 Hz, 4,000 Hz
Description
Inverter e@syDrive® TV 4504
Technical data
Part No.
2001 9226 : 230 V
2002 5904 : 115 V
Input voltage
230 V / 50 Hz respect. 100 V / 60 Hz
Output voltage
3 x 60 V AC
Output current
7 A (max. 8.5 A)
Rated output power
480 VA
Output frequency
AC: 4,000 Hz / 240,000 rpm
DC: 1,667 Hz / 100,000 rpm
Modulation type
Sine PWM, Block PWM
Brake resistor (internal)
47 Ohm / 10 W
Ambient temperature
5 - 40°C
Protection category
IP 20
Design
Table version
EMC
EN 55011
Weight
6.0 kg
Power supply
Integrated
Supplement
Incl. mating connector
Configuration
Via computer interface (RS232)
Interfaces
2 x Digital output
1 x Analogue output
3 x Digital input
1 x Analogue input
DC Spindle reference
4015 DC (all types), 4025 DC-T* (all types)
AC Spindle reference
4025, 4026, 4033 AC* (all types)
