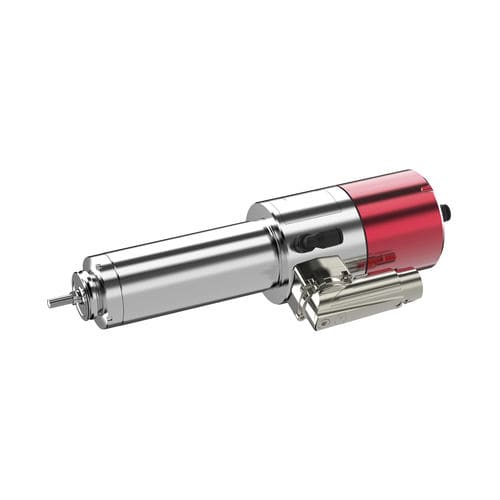

Milling motor spindle 4033 DC-T-CS

clampingengravinggrinding

Technical data Part No. 2002 0400 Applications Drilling, Milling, Grinding, Engraving Clamping diameter 33 mm Motor system Brushless DC motor (BLDC) Speed range 5,000 - 60,000 rpm Frequency 83 – 1,000 Hz Voltage 49 V Current S1: 14 A, max. 24 A / 5s Torque S1: 17.2 Ncm, max. 27 Ncm Output power S1: 900 W, max. 900 W Motor protection PTC Weight 1.0 kg Bearing system 3 x Hybrid, lifetime lubrication Run-out (taper) ≤ 1 µm Chuck clamping range max. Ø 4.0 mm Chuck type C3 Tool change Pneumatic 5 – 6 bar (hose Ø 4 mm) Cooling system Cooling via clamping bracket Protection category IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2618) Protected against dirt and cooling lubricant Sealing air 27 l/min@STP (hose outside Ø 4 mm) Housing material Stainless steel Cable / plug type 915 Inverter recommendation e@syDrive® 4625* e@syDrive® 4626 e@syDrive® TV 4506* Highlights Taper cleaning at 6 bar
