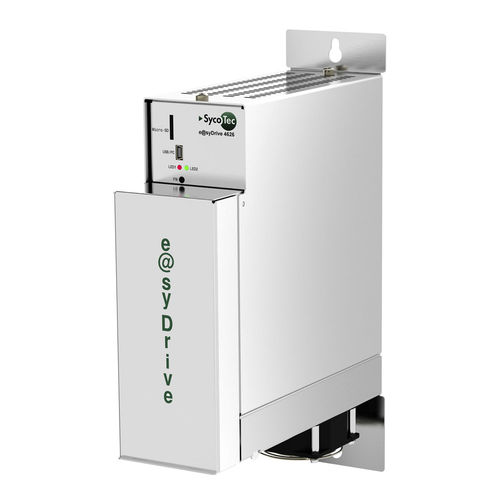

Digital frequency inverter e@syDrive® 4626

cabinetindustrialIP20

Inverter e@syDrive® 4626 Technical data Part No. 2002 1055 Input voltage max. 70 V DC / 49 V AC Output voltage 3 x 45 Veff Output current 16 Aeff / 24 Amax (5s) Rated output power 1,000 VA / 1,500 VAmax (5s) Output frequency max. 4,000 Hz Modulation type Pulse amplitude modulation (PAM) Brake resistor (internal) 60 W Ambient temperature 5 - 40°C Protection category IP 20 Design Cabinet version EMC EN 61800-3 Weight 2.7 kg Power supply e@syDrive® 4429 Display 2 x LED Configuration Via USB by user interface "SycoDrive" Via micro SD card Interfaces 7 x Digital input (configurable) 1 x Frequency output 1 x Analogue input 1 x Analogue output 2 x Relay output (configurable) 2 x STO (safe torque off) 1 x CANopen 1 x RS232 DC Spindle reference 4025 DC-S (all types), 4025 DC-T (all types), 4033 DC, 4033 DC-T (all types), 4036 DC-T (all types), 4040 DC-S, 4041 DC-S AC Spindle reference 4033 AC (all types), 4040, 4041, 4041 HY-ESD, 4041 HY-ESD-BW Highlights • STO (safe torque off) according DIN EN 61800-5-2 • User interface available for PC and Android tablet PC
