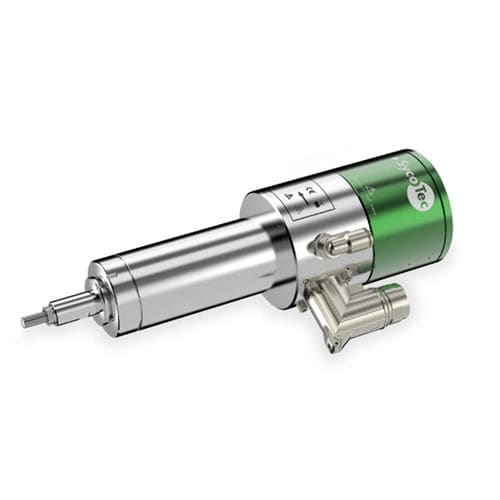

Milling motor spindle 5045 AC-C5

clampingengravinggrinding

Technical data Part No. 2002 0700 Applications Drilling, Milling, Grinding, Engraving Clamping diameter 45 mm Motor system 3 Phase asynchronous motor Speed range 6,000 – 60,000 rpm Frequency 100 – 1,000 Hz Voltage 180 V Current S1: 3.5 A, max. 5.0 A Torque S1: 11.5 Ncm, max. 19.5 Ncm Output power S1: 650 W, max. 1,280 W Motor protection PTC Weight 2.6 kg Bearing system 3 x Hybrid, lifetime lubrication Run-out (taper) ≤ 1 µm Chuck clamping range max. Ø 6.0 mm Chuck type C5 Tool change Pneumatic 3.5 – 4.0 bar (hose Ø 6 mm Cooling system Cooling via clamping bracket Protection category IP 55 Protected against dirt and cooling lubricant Sealing air 25 – 30 l/min@STP (hose Ø 6 mm) Housing material Stainless steel Cable / plug type M23 / M23-QL Inverter recommendation e@syDrive® 4638 e@syDrive® TV 4538 Highlights • Taper cleaning at 4 bar • Collet stop
