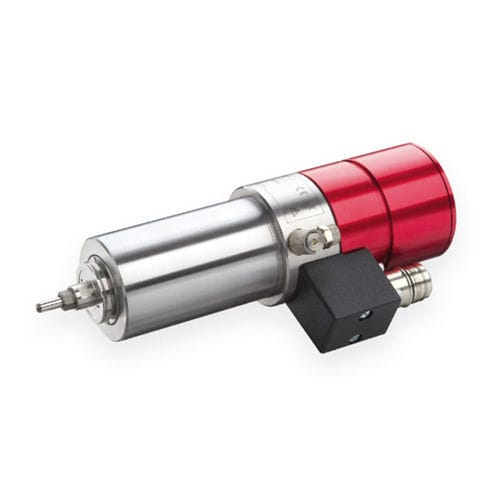

Milling motor spindle 4061 AC-CS-TC

clampinggrindingdrilling

Technical data Part No. 2002 3700 Applications Drilling, Milling, Grinding, Engraving Clamping diameter 60 mm Motor system Brushless DC motor (BLDC) Speed range 6,000 - 60,000 rpm Frequency 100 – 1,000 Hz Voltage 230 V Current max. 12 A Torque max. 65 Ncm Output power max. 3,000 W Motor protection PTC-100°C Weight 4.0 kg Bearing system 3 x Hybrid, lifetime lubrication Run-out (taper) ≤ 1.5 µm Chuck clamping range Ø 1.0 – 6.35 mm (incl. 1/8" + 1/7") Chuck type C4 Tool change Pneumatic 5 – 6 bar (hose inside/outside Ø 4/6 mm) Cooling system Cooling via clamping bracket Protection category IP 54 Protected against dirt and cooling lubricant Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 4/6 mm) Housing materia lStainless steel Cable / plug type M23 / M23-QL Inverter recommendation e@syDrive® 4638 e@syDrive® TV 4538 Highlights • Collet stop • Taper cleaning
