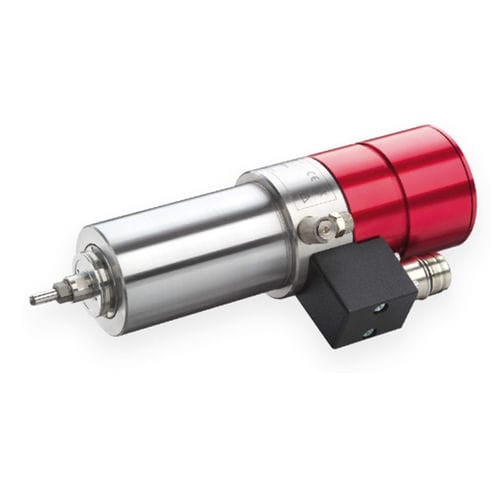

Milling motor spindle 4061 DC-T

clampingengravinggrinding

Technical data Part No. 1002 5587 Applications Drilling, Milling, Grinding, Engraving Clamping diameter 60 mm Motor system Brushless DC motor (BLDC) Speed range 2,500 – 25,000 rpm Frequency 42 – 417 Hz Voltage 230 V Current max. 12 A Torque max. 130 Ncm Output power max. 2,800 W Motor protection PTC-100°C Weight 4.0 kg Bearing system 3 x Steel, lifetime lubrication Run-out (taper) ≤ 1.5 µm Chuck clamping range Ø 1.0 – 6.35 mm (incl. 1/8" + 1/7") Chuck type C4 Tool change Pneumatic 7 – 8 bar (hose inside/outside Ø 4/6 mm) Cooling system Cooling via clamping bracket Protection category IP 54 Protected against dirt and cooling lubricant Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 4/6 mm) Housing material Stainless steel Cable / plug type M23 / M23-QL Inverter recommendation e@syDrive® 4638 e@syDrive® TV 4538
