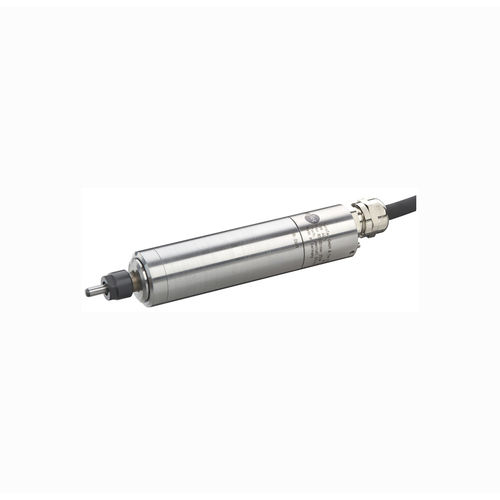

Milling motor spindle 4015 DC

clampingengravinggrinding

Technical data Part No. 1001 2437 Applications Drilling, Milling, Grinding, Engraving Clamping diameter 25.4 mm Motor system Brushless DC motor (BLDC) Speed range 5,000 - 80,000 rpm / 100,000* rpm Frequency 83 – 1,333 Hz / 1,666* Hz Voltage 32 V Current max. 8 A Torque max. 4 Ncm Output power max. 300 W Motor protection - Weight 0.4 kg Bearing system 3 x Hybrid, lifetime lubrication Run-out (taper) ≤ 1.5 µm Chuck clamping range Ø 0.5 – 4.0 mm (incl. 1/8") Chuck type C1-8 Tool change Manual (open end wrenches) Cooling system Cooling via clamping bracket Protection category IP 54 Protected against dirt and cooling lubricant Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 2.5/4 mm) Housing material Stainless steel Connecting cable 2.0 m Inverter recommendation e@syDrive® 4310 (IP 00) e@syDrive® 4320 (IP 00) e@syDrive® 4624 e@syDrive® TV 4504
