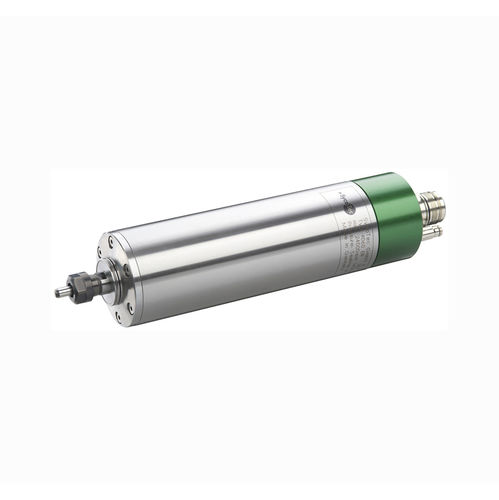

Milling motor spindle 4060 ERclampingengravinggrinding
Add to favorites
Compare this product
Characteristics
- Function
- milling, clamping, engraving, grinding, drilling
- Drive system
- AC motor, manual
- Other characteristics
- high-frequency
- Rotational speed
Min.: 3,000 rpm
(18,849.56 rad.min-1)Max.: 24,000 rpm
(150,796.45 rad.min-1)- Diameter
60 mm
(2.4 in)
Description
Technical data
Part No.
2000 6000
Applications
Drilling, Milling, Grinding, Engraving
Clamping diameter
60 mm
Motor system
3 Phase asynchronous motor
Speed range
3,000 - 24,000 rpm
Frequency
50 - 400 Hz
Voltage
230 V
Current
max. 14 A
Torque
max. 215 Ncm
Output power
max. 2,000 W
Motor protection
PTC-130°C
Weight
3.5 kg
Bearing system
3 x Steel, lifetime lubrication
Run-out (taper)
≤ 1 µm
Chuck clamping range
Ø 0.5 – 8.0 mm
Chuck type
ER11
Tool change
Manual (combination wrenches)
Cooling system
Cooling via clamping bracket
Protection category
IP 54/57
Protected against dirt and cooling lubricant
Sealing air 0.8 – 1.0 bar (hose outside Ø 4 mm)
Housing material
Stainless steel
Cable / plug type
M23 / M23-QL
Inverter recommendation
e@syDrive® 4638
e@syDrive® TV 4538
EMERSON Unidrive M300-HS30
