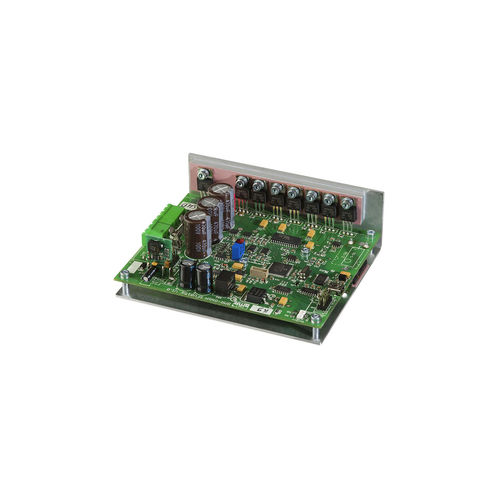

Digital frequency inverter e@syDrive 4310

cabinetindustrialcompact

Inverter e@syDrive® 4310 (IP 00) Technical data Part No. 2001 2287 Input voltage max. 80 V / 8 A DC Output voltage max. 3 x 55 V Output current 7 A (max. 9 A) Rated output power 640 VA Output frequency AC: 4,000 Hz / max. 240,000 rpm DC: 1,667 Hz / max. 100,000 rpm Modulation type Pulse width modulation (PWM) Brake resistor (internal) 47 Ohm / 10 W Ambient temperature 5 - 40 °C Protection category IP 00 Design Cabinet version Weight 0.3 kg Switching power supply Switching power supply 2001 3721, (90-264 V AC / 48 V DC / 150 W) Display 2 x LED Configuration Via Computer-Interface (USB/RS232) Interfaces 3 x Digital output 1 x Analogue output 1 x Digital input 1 x Analogue input DC Spindle reference 4015 DC (all types), 4025 DC-T* (all types) AC Spindle reference 4025, 4026, 4033 AC* (all types)
