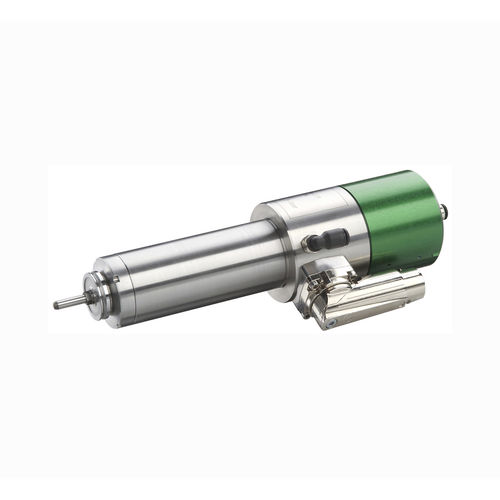

Clamping motor spindle 4033 AC-ESD-CS

for PCB routingAC

Technical data Part No. 2002 2220 Applications PCB routing Clamping diameter 33 mm Motor system 3 Phase asynchronous motor Speed range 6,000 - 100,000 rpm Frequency 100 - 1,666 Hz Voltage 30 V Current max. 8 A Torque max. 8.4 Ncm Output power max. 500 W Motor protection KTY Weight 1.0 kg Bearing system 3 x Hybrid, lifetime lubrication Run-out (taper) ≤ 1 µm Chuck clamping range max Ø 4.0 mm Chuck type C3 Tool change Pneumatic 5 – 6 bar (hose Ø 4 mm) Cooling system Cooling via clamping bracket Protection category IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2618) Protected against dirt and cooling lubricant Sealing air 27 l/min@STP (hose outside Ø 4 mm) Housing material Stainless steel Cable / plug type 915 Inverter recommendation e@syDrive® 4310 (IP 00)* e@syDrive® 4320 (IP 00)* e@syDrive® 4624* e@syDrive® 4625 e@syDrive® 4626 e@syDrive® TV 4503* e@syDrive® TV 4504* Highlights Electrostatic discharge e@syDrive® TV 4506
