Hydraulic press YR27 10000

manualelectricforming

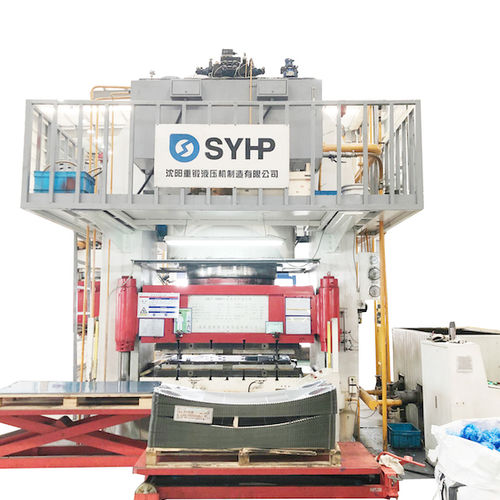

YR27 10000/12000/15000 TON HYDRAULIC PRESS The machine is mainly used for forming large sheet shell such as titanium, stainless steel and heat exchanger platen, etc. It also can be used for forming large cover parts and cold forming. The machine is designed with the structure of pre-tension wire wound type which ensures reliable operation, small dimension and light weight. It has independent electric control system and hydraulic system. The electric system is controlled by PLC program. It has centralized button-control system with manual and semi-auto work modes for selection. Work pressure and speed of work feed can be adjusted. This series of machines have a pressure display device, temperature display alarm device, counting display device, keeping pressure time setting device etc. It has stable working performance, perfect keeping pressure performance, accurate delaying time and high automation. The machine is equipped with quick mould-changing device. It can be connected to YS26-450 plate punching hydraulic press to form a plate production line of heat exchanger, which can significantly improve the efficiency of plate production.
