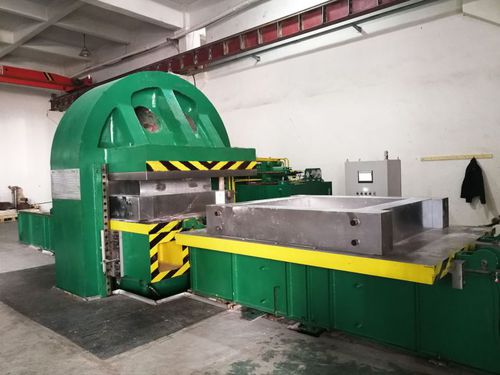

Hydraulic press YR27 3500

manualelectricforming

YR27 3500/4000/6000/8000 TON PTFE Moulding Sheet Hydraulic Press PTFE powder is compressed in sheet forming by hydraulic press. And then sintered in hot air ovens. The machine is mainly used for powder compressed such as PTFE/Teflon powder etc. It also can be used for forming large cover parts. The machine is designed with the structure of pre-tension wire wound type which ensures reliable operation, small dimension and light weight. It has independent electric control system and hydraulic system. The electric system is controlled by PLC program. It has centralized button-control system with manual and semi-auto work modes for selection. Work pressure, holding pressure time and speed of work feed can be adjusted. This series of machines have a pressure display device, temperature display alarm device, counting display device, keeping pressure time setting device etc. It has stable working performance, perfect keeping pressure performance, accurate delaying time and high automation.
