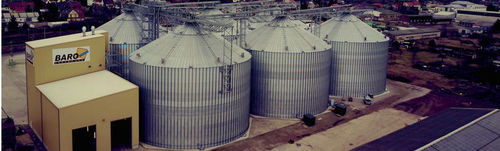

Flat bottom silo S.B.H.

for pelletsfor grainfor the food industry

The wide range and the versatility of our flat or conical bottom silos for long-term storage make them available for different industries such as breweries, animal feed, port facilities, flourmills, ethanol, drying, and storage of raw materials for the plastic industry and biofuels. RAW MATERIAL: The company manufactures in galvanized corrugated steel, with a 600 gr/m² coating and ZM310 gr/m², ensuring a double service life more than other suppliers do. WIDE RANGE OF PRODUCTS: We fully meet the needs of our customers by offering silos from 5m³ to 25,000m³ capacity. CALCULATION OF THE STRUCTURE: Silo calculation is made according to different norm as ANSI – ASAE EP 433 2033, EUROCODE EN-1991-4, or any different required norm. SILO COMPONENTS: 30º degrees roof Composed by trapezoidal sectors. The special geometry of the wave of the roof and longitudinal folds gives high strength and stiffness. Depending on silo diameter, and roof loads, roof can be supplied with our without structure. Cylindrical body Made up of bodysheets and stiffeners, manufactured in structural steel S 350 GD Z600 hot dip galvanized. Wind rings Are provided in order to resist the wind forces and to prevent deformation of the silo. The quality of the rings is E-220 Z275 MAC (EN 10305-3:2011) Roof steps Roof scale with angular rungs facilitating the path between the inspection door and the centre collar.
