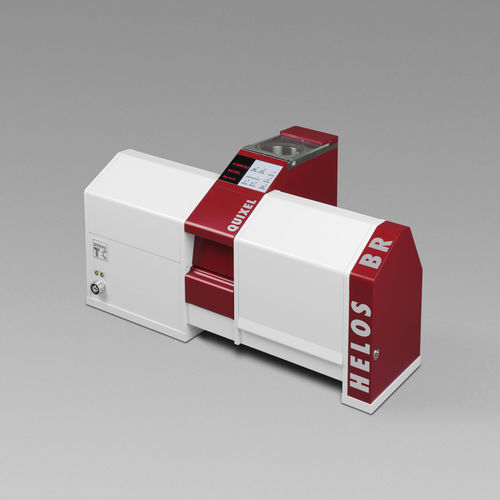

Laser diffraction particle size analyzer HELOS & QUIXEL

wet typeautomatic

QUIXEL/L is the advanced wet dispersing system suitable for particle size analysis of all kinds of suspensions and emulsions in the size range of 0.1 µm up to 3.5 mm. Its innovative, tubeless design enables very fast measuring cycles. Even high density particles such as 3 mm ball bearing beads made from stainless steel are safely transported in water through the flow cell without the need for using special liquids of high viscosity. QUIXEL/L is a closed loop wet disperser. It comprises a vertical stainless steel basin for up to 1 liter of suspension. On the top of the basin an overflow ring chute is connected to the draining hose. This is a safety function but can be used in specific applications to gently dilute the suspension in order to lower the concentration to the requirements of the sensor. The removable glass lid avoids evaporation e.g. of organic solvents.
