Printed circuit DC/DC converter PQ65180QGx06
insulated

Printed circuit DC/DC converter - PQ65180QGx06 - SYNQOR - insulated
Printed circuit DC/DC converter - PQ65180QGx06 - SYNQOR - insulated
Printed circuit DC/DC converter - PQ65180QGx06 - SYNQOR - insulated - image - 2
Add to favorites
Compare this product


Characteristics

Configuration
printed circuit
Other characteristics
insulated
Input voltage

Min.: 40 V

Max.: 75 V

Output voltage

18 V

Power

100 W

Description

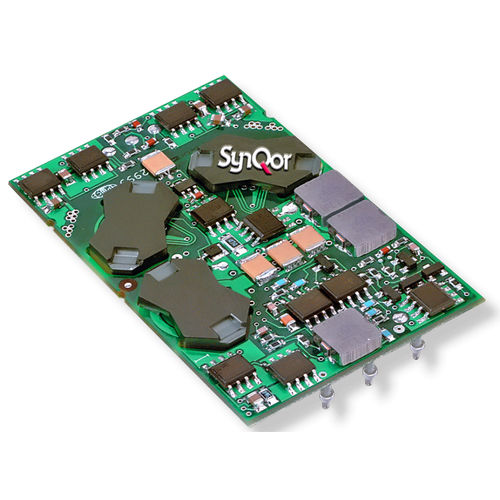

The PQ65180QGA06 PowerQor Giga quarterbrick converter is a next-generation, board-mountable, isolated, fixed switching frequency DC-DC converter that uses synchronous rectification to achieve extremely high conversion efficiency. The power dissipated by the converter is so low that a heatsink is not required, which saves cost, weight, height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate with highyield surface mount technology. Since the PowerQor converter has no explicit thermal interfaces, it is extremely reliable. RoHS Compliant (see last page)." OPERATIONAL FEATURES • High efficiency, 91% at full rated load current • Delivers 100W with minimal derating - no heatsink required • Wide input voltage range: 40V – 75V with 100V, 100ms input voltage transient capability • Fixed frequency switching provides predictable EMI • No minimum load requirement or preload resistors required MECHANICAL FEATURES • Industry standard pin-out configuration • Standard Size:2.30"x1.45"x0.397" (58.4x36.8x10.08mm) • Weight: 1.2 oz. (34 grams) • Flanged pins designed to permit surface mount soldering, avoid wave solder using FPiP technique on open frame units CONTROL FEATURES • On/Off control referenced to input side • Positive and negative logic options are available • Remote sense on Vout compensates for output distribution drops SAFETY FEATURES • UL 60950-1:R2011-12 • EN60950-1/A12:2011 • CAN/CSA-C22.2 No. 60950-1/A1:2011 PROTECTION FEATURES • Input under-voltage lockout disables converter at low Vin conditions
