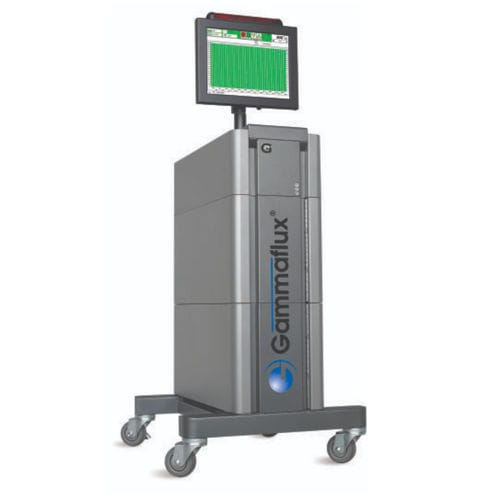

Digital temperature controller G24

programmablehot runnerheating

The G24 hot runner temperature controller is designed for easy operator use, and programmable to automatically operate according to the industry’s best practices. An optional Sequence Start can be activated to only power the manifold zones, wait until they reach temperature, start a soak period countdown timer and finally heat the smaller, faster heating nozzle zones. This practice is always recommended but seldom done in the industry. The primary benefits include maintaining the integrity of the manifold seal by controlling heat expansion and preventing material degradation caused by excessive nozzle heater material residence time. Smaller: Each control module has a 15 amp per zone output rating. Up to 24 zones can be placed in a single control block. When compared to the Gammaflux TTC product line, this specific 128 zone controller has a 48% smaller footprint. Faster: The G24 utilizes industrial USB connectivity for up to a 0.1 second screen update rate. Streaming real-time control numbers to the screen allows the user to better see what is happening inside the tool so they can diagnose difficult to understand issues. More Flexible/Standardization: The standard two zone 15 amp per zone output module easily controls both nozzle and manifold zones making the controller easy to use across a range of molds for effortless production scheduling. The G24 is even able to control up to 30 amp zones with a 15 amp module by restricting the maximum output to 15 amps.
