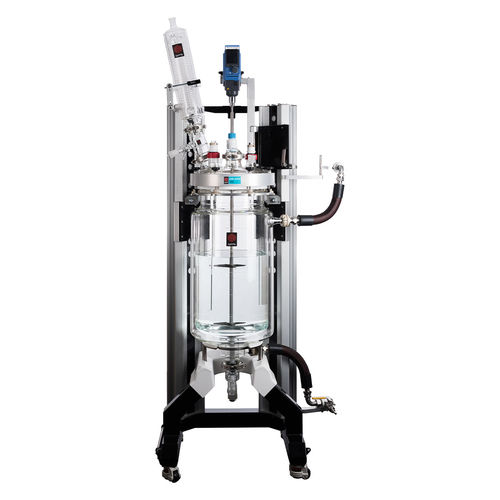

Pilot reactor Orb Pilot

stirred-tankbatchlaboratory

Orb Pilot is the most flexible and versatile floor-standing jacketed reactor system for scaling up of batch processes. Designed from the ground up with the help of scale-up chemists and chemical engineers, Orb Pilot boasts a wealth of user-friendly features such as quick vessel changes, easy height adjustments, and a self-adjusting spring-loaded base frame. Multiple setups, one footprint: Whether you require a 10 or 50 L vessel, jacketed or vacuum jacketed, all can be used on the same frame with Orb Pilot. An additional accessories spine can be placed alongside for supporting pumps, collection vessels or reflux assemblies as well as many other configurations. Vessel change in under an hour: In other reactor systems, changing vessels can take days. Time can be expensive, so Orb Pilot was designed to ensure you have more time to focus on chemistry rather than setting up your system. Along with a tool-free clamp, Orb Pilot has a spring-loaded base and quickly removable motor to enable vessel changes in under an hour. Superior mixing: Along with an extensive range of stirrer options (including PBT, hydrofoil and anchor), Orb Pilot has easily removable baffles. Not only do these improve mixing, but they can also be quickly removed and cleaned via the lid ports. These are available in both high and low-shear mixing profiles. Efficient and powerful stirring: Orb Pilot is compatible with all major stirrer manufacturers’ products without the need to change mounting hardware. Choose from a selection of stirrer motors offering up to 500 rpm and 400 Ncm continuous torque.
