Box PC Xavier

DisplayPortUSBEthernet

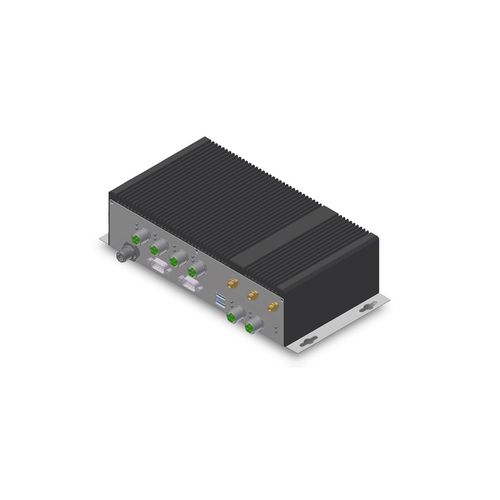

The AI Railway Computer RSL A3 is deployed wherever artificial intelligence and edge computing meet. Typical applications are the support of semi-autonomous driving, condition-based monitoring or predictive maintenance. Syslogic uses a Jetson AGX Xavier processor module by Nvidia as the basis for the AI Railway Computer RSL A3. Syslogic combines this innovative processor technology with the proven features of existing railway computers. For example, the AI Railway Computer is passively cooled, has a robust housing and screw-on M12 connectors. Thus, the AI Railway Computer complies with railway standard EN50155, class OT4, as well as fire protection standard EN45545. NVIDIA Jetson JETSON AGX XAVIER 512-core NVIDIA Volta™ GPU with 512 Tensor Cores AI Performance: 32 TOPs 8-Core ARM v8.2 64-bit NVIDIA Carmel CPU 16GB 256-bit LPDDR4 RAM soldered on board 32GB eMMC 5.1 Flash Storage on board microSD Card socket CFast socket with retention frame Graphic interface DisplayPort 1.2 2x USB version 3.0 (Type A ) Internal USB version 2.0 OTG behind the cover (micro USB Type AB) Ethernet 10/100/1000Mbit (M12 female x-coded) Ethernet 10/100/1000Mbit (I210-IT) (M12 female x-coded) 2x Active/passive-CAN ESD protected, isolated (DSUB9) Mini PCIe socket
