USB interface CAN-FD

connectionhigh-speedmobile

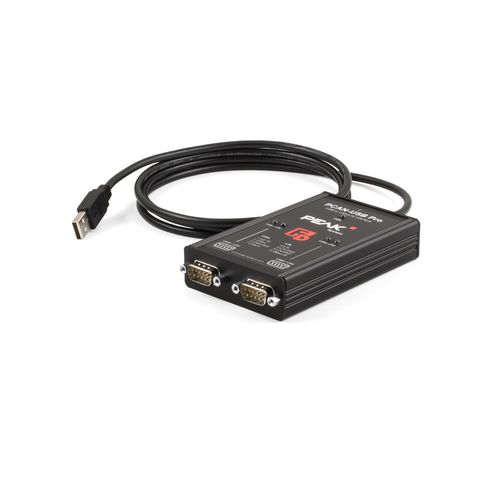

The PCAN-USB Pro FD adapter enables the connection of CAN FD and LIN networks to a computer via USB. Two field busses can be connected at the same time, up to four with appropriate adapter cables (2 x CAN FD, 2 x LIN). Each CAN FD channel is separately isolated against USB and LIN with a maximum of 500 Volts. Its robust aluminum casing makes the PCAN-USB Pro FD adapter suitable for mobile applications. The new CAN FD standard (CAN with Flexible Data rate) is primarily characterized by higher bandwidth for data transfer. The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 12 Mbit/s. CAN FD is downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can be used in existing CAN networks. However, in this case the CAN FD extensions are not applicable. The monitor software PCAN-View and the programming interface PCAN-Basic for the development of applications with CAN connection are included in the scope of supply and support the new standard CAN FD. The monitor application PLIN-View Pro as well as the PLIN programming interface are also included in the scope of supply. Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0) Transmitting and receiving of CAN FD and LIN messages using 2 D-Sub connections (both with pin assignment for the CAN FD and LIN bus) Time stamp resolution 1 μs 5-Volt supply at the D-Sub connector can be activated through a solder jumper, e.g. for external bus converter Voltage supply via USB Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
