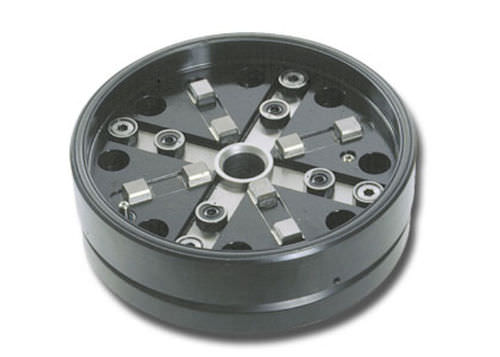

6-jaw turning chuck Macro Magnum

EDM

Rapid changes in todays consumption patterns must be met with manufacturing methods which give profitability even with short runs. Shorter runs mean frequent setting-up, so that setting-up times are becoming increasingly significant in terms of the financial results. Every minute of setting-up time that can be converted to active machining time means lower costs. So minimised setting-up times lead to higher productivity, greater flexibility and therefore increased profitability. MacroMagnum is a further development of the patented Macro system. The powerful clamping force and the position of the reference surfaces far away from the chuck centre provide a stability and accuracy that are ideal for applications with powerful machining forces. - A seal protects the references from fouling - Double Z-references for different pallet sizes - Double X/Y references of cemented carbide - Coarse guiding protects the references - Automatic air-blast cleaning - Turbo locking Facts - Repetition accuracy: 0.002 mm - Recommended tightening torque, manual chucks: Macro pallets 5 Nm, MacroMagnum pallets 12 Nm - Clamping force: 16 000 N
