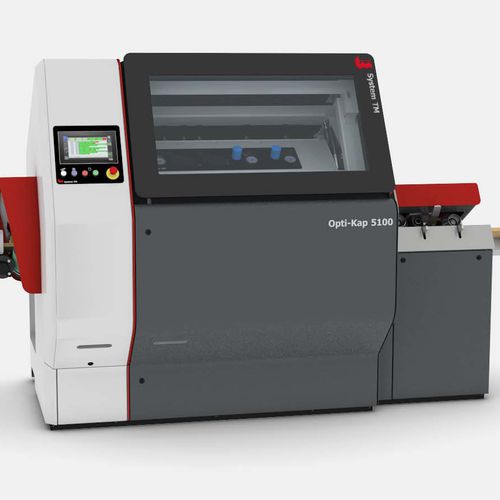

Circular sawing machine Opti-Kap 5100

woodfor profilesfully-automatic

The impressive power, intelligent performance and high level of safety of the Opti-Kap 5100 series has changed the standard of future optimizing cross-cutting. The Opti-Kap 5100 is designed to meet maximum capacity performance and built as a powerful robust cross-cut saw with mechanical components of high quality. The forward motion of workpieces inside the saw is achieved as a result of 9 servo driven bottom rollers and 9 double pneumatically-activated pressure rollers. Both the driven and the pressure rollers are double-supported to ensure maximum contact with the workpieces and to guarantee excellent accuracy and an exceptional capacity. The saw blade has a circular movement driven by a servo motor, ensuring a smooth saw blade stroke for optimal kerfs and minimizing the tear-outs during cross-cutting. The Opti-Kap 5100 series automatically recognizes lengths, as well as marked/scanned defects. Ultimately, it cuts the workpieces into components with an accuracy of ± 0.75 mm (0.03”) in cross-cut lengths up to 1,000 mm (39’’).
