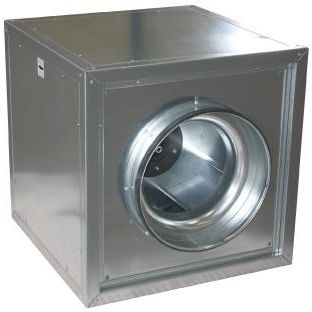

Low-noise fan MUB/F seriescentrifugalfume exhaustgalvanised steel
Add to favorites
Compare this product
Characteristics
- Type
- low-noise
- Configuration
- centrifugal
- Function
- fume exhaust
- Material
- galvanised steel
- Applications
- industrial
- Other characteristics
- backward curved
- Air flow
Max.: 3.82 m³/s
(134.902 ft³/s)Min.: 0.77 m³/s
(27.192 ft³/s)
Description
The MUB/F smoke extract fans are suitable for the exhaust of hot smoke gases and for daily ventilation requirements.
Casing
Self-supporting design made from profiled steel frame.
Double-skin panels made from galvanised steel and 20 mm mineral wool acoustic and thermal insulation.
Motor
Single or two speed fire rated high temperature motors.
Impeller geometry
Radial impeller with backward cuved blades made from galvanised sheet steel.
Output control
Speed controllable via frequency inverter.
