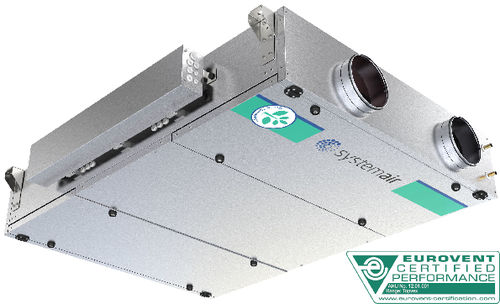

Horizontal air handling unit TOPVEX FC

heat-recovery

Topvex FC – Flat compact air handling unit with counter flow heat recovery available in three sizes, with air flows up to 3.500 m3/h Topvex FC is a heat recovery unit that is especially suitable for installation in ceilings. The building height of the smallest Topvex FC is only 350 mm. As all units in the Topvex series, Topvex FC is very energy-efficient. Thanks to double counter-current exchangers you get efficiencies of over 80% (measured in accordance with EN308). This, in turn, naturally contributes to low SFP values. Another advantage of the counter-current exchangers is that there is no leakage between the supply and exhaust air. Topvex FC is equipped with large doors that facilitate service and maintenance. When the unit is installed in the ceiling, it can be fitted with sliding doors (optional). To facilitate installation and commissioning Topvex FC is delivered with complete control equipment with, among many other things, has a demand-controlled defrosting function. The unit can be connected to a host system. The electricity/control box can be tilted for better access when connecting. To ensure reliable performance Topvex FC is certified by Eurovent.
