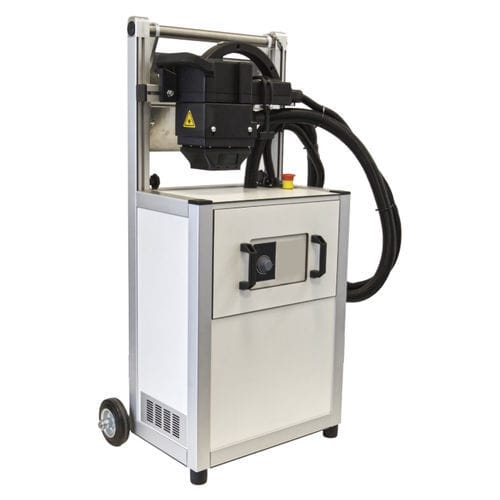

Laser marking machine LAS 23

mobileindustrialcompact

The mobile laser LAS 23 portable is characterized by its compact design. Small, handy and with custom-made attachments that can be individually exchanged in the quick-change system. With its mobile base, it can be moved to the workpieces to be marked. This makes it suitable for small, large and heavy workpieces. With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks without extensive programming knowledge. Serial and item numbers are automatically incremented by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a hand scanner is also possible. •Fiber laser 20 W (Optional: 30 W, 50 W) •Laser class 1 •Wavelength 1064 nm •Marking field size 70 x 70 mm (optionally larger) •Marking software EZCAD •Structure in profile technology •Connection 230 V including cable reatractor •Air cooled •Laptop including holder with Windows operating system •Dimensions: 350 x 605 x 1080 mm (L x W x H) •Weight: approx. 45 Kg •Weight of handheld laser unit 3 Kg •Fume extraction (option)
