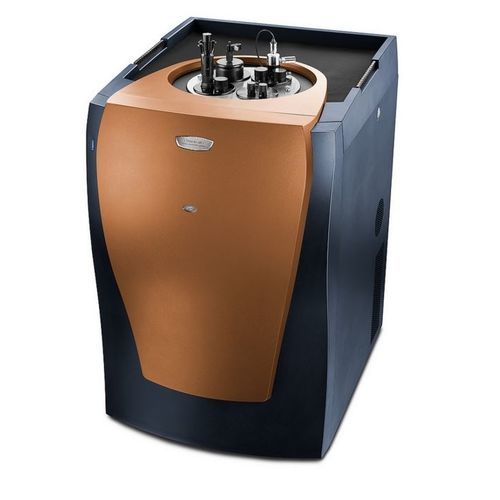

Isothermal calorimeter TAM IV-48

titration

The TAM IV- 48 expands the TAM IV capabilities as a high-throughput microcalorimeter system that can be configured to accommodate up to 48 individual calorimeters. TAM IV-48 is a high-throughput version of the TAM IV and can accommodate up to 48 individual 4 mL Minicalorimeters. The large number of independent and parallel sample-measurements makes this system the optimal solution for sample screening, formulation, and process development. It is equally useful in research laboratories as in industrial laboratories including pharmaceutical production control. Features & Benefits New and more responsive temperature control provides rapid thermal equilibration and extended temperature range of 4 °C to 150 °C for real-world cold storage applications. Unmatched temperature stability for accurate heat flow measurement in experiments that last anywhere from a few hours to days and weeks 48 calorimeter positions that can be equipped with up to 48 4 mL Minicalorimeters, each of which operates simultaneously and independently for high-throughput microcalorimetric measurements From one and up to 48 4 mL Minicalorimeters can be installed in the TAM IV-48 thermostat. A Minicalorimeter is a 4 mL calorimeter with a special design to reduce the space occupied by the calorimeter inside the TAM thermostat. The permanently mounted reference is positioned below the sample and is optimized to match the most typical sample. This space-saving over-under design make it possible for high sample throughput by maximizing the number of calorimeters in the thermostat. Each calorimeter can be used independent, the only thing they have in common is the measuring temperature.
